Weight | 1.65 kg |
---|---|
Dimensions | 80 × 300 × 210 mm |

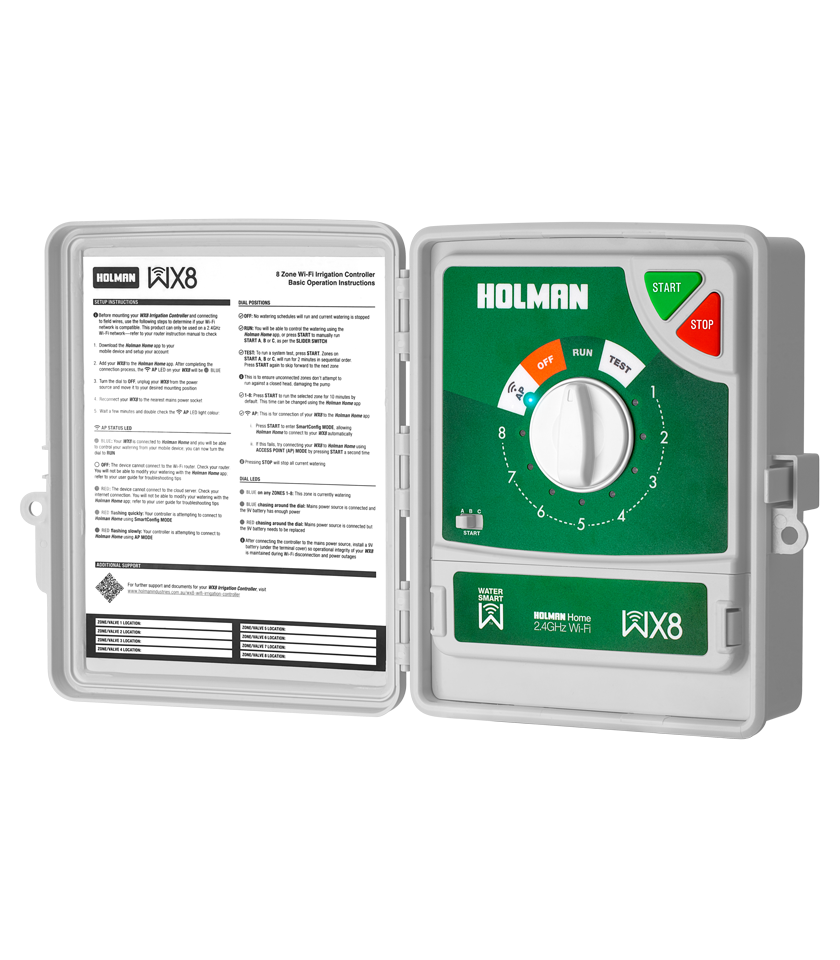

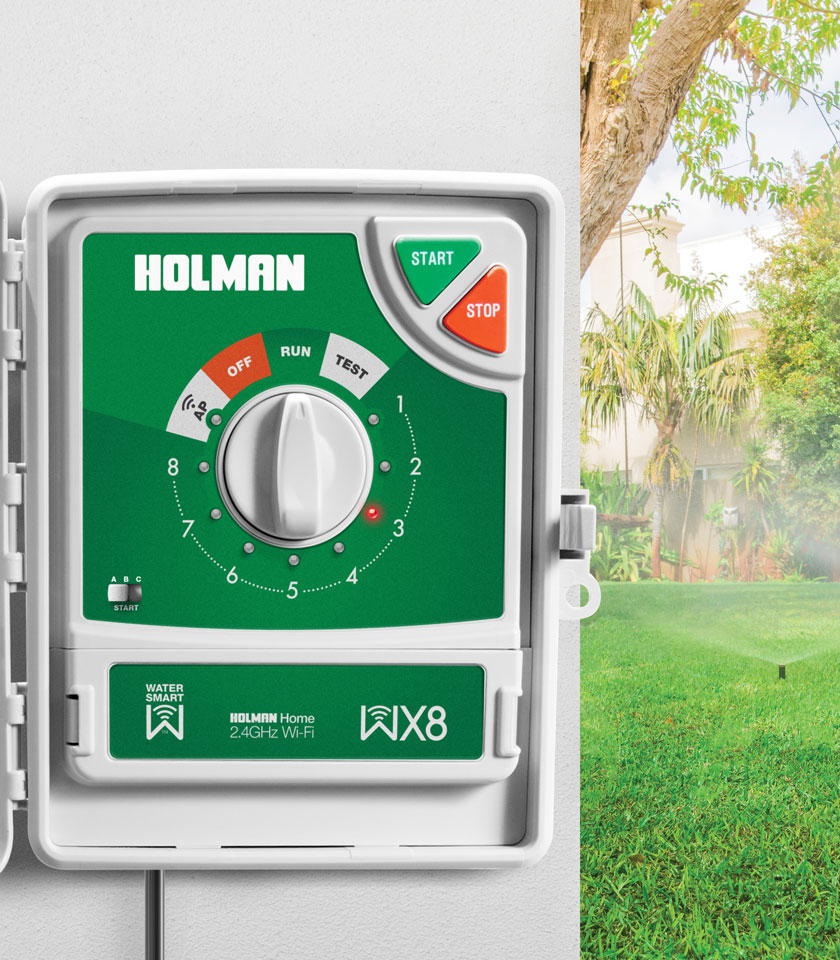

WX8 8 Station Wi-Fi Irrigation Controller
Powered by Holman Home, the WX8 8 Station Wi‑Fi Irrigation Controller is the ultimate way to control your irrigation from anywhere with an internet connection. Compatible with existing irrigation systems, the WX8 connects up to 8 solenoid valves for free and easy control, anywhere on the globe.

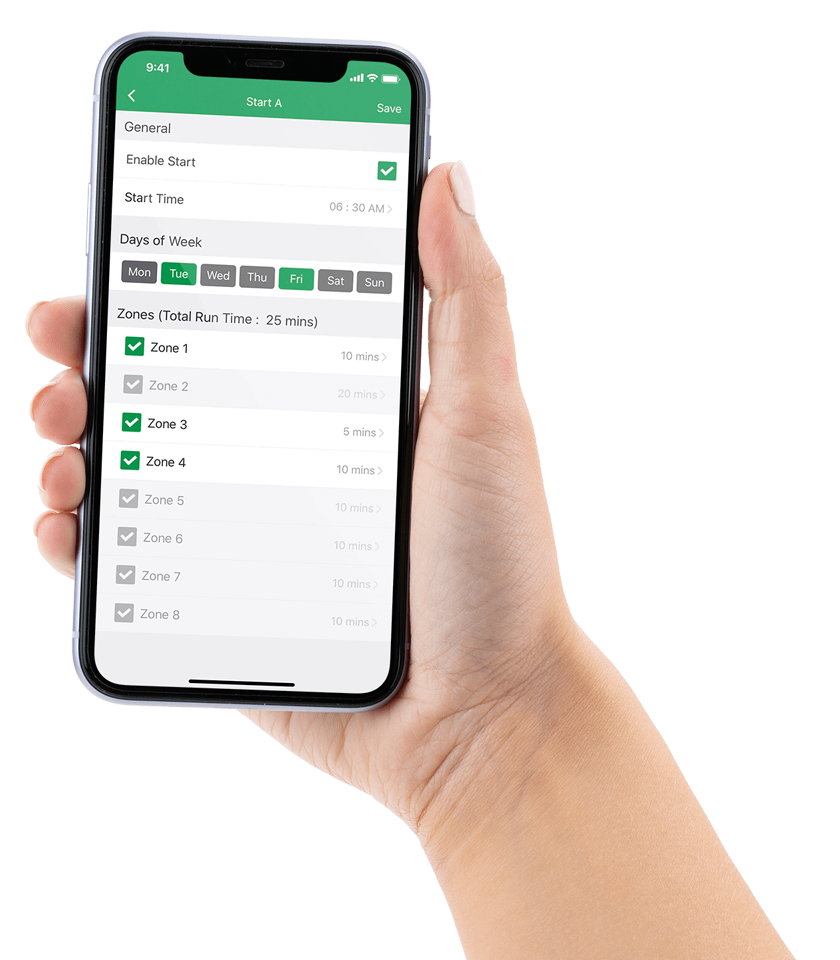

- Control with Holman Home, available on the App Store and Google Play
- Control up to 8 watering zones
- Multiple day selection options from 7-day week
- Manual START/STOP controls available onboard the controller
- Program to meet water restrictions*
- 3 Year Warranty
- Smart Automation disclaimer
WX Wi-Fi Range: WX8 Controller |
Specifications
Material | Plastic |
---|---|
Weight | 0.75kg |
To Solenoids | 24V AC 50/60Hz. 0.5 amp max |
Input | 240V AC 50/60Hz |
Output | 24AC, max. 1 amp |
Rain Sensor Compatible | EVIE Sensor |
Zones | 8 |
Master Valve / Pump relay | Compatible |
Start Times | 3 per zone |
Zone Run Time | up to 3hr 59min |
Wi-Fi | 2.4GHz network |
Electrician Required | No |
Warranty | 3 Years |
WaterMark Approval | Yes |
Manuals
User Guide
Quick Setup Guide
Holman Home Guide
Wiring your WX8 Controller
FAQ
How do I set up my WX8 Irrigation Controller for daylight saving time?
The WX8 internal clock does not adjust to daylight saving time automatically.
To ensure the WX8 waters Starts A, B & C at the correct time, simply open the WX8 user interface on the Holman Home app and it will synchronise the current phone time to the WX8.
Synchronising the current phone time to the WX8 is done to ensure the WX8 will have the correct time even if its connection to the internet is down — it will run the scheduled Starts with no issue. It protects your watering times and your garden.
If your location uses daylight saving time then your irrigation controller may water one hour before or one hour after the time you have set the Starts to run.
Note: Daylight saving time in Australia begins the first Sunday in October and ends on the first Sunday in April.
Videos
Manual watering controls with custom run durations
Run any start pattern or zone, right now, when you need it. Simply pick your configuration, set your watering duration, and tap DONE.
Check the status, wherever you are
In the garden, at the office or even on the other side of the world. As long as you have internet access, you can check on the status of your watering schedules.
Features
- For use with smartphone or tablet running iOS or Android
- Control with Holman Home, available on the App Store and Google Play
- Connect via Wi-Fi through your home 2.4GHz network
- Control up to 8 watering zones
- Schedule up to 3 different run times, to then allocate to any zone
- Multiple day selection options from 7-day week
- Manual START/STOP controls available onboard the controller
- Program to meet water restrictions *
* Programming abilities are subject to your local water authority — be sure to consult them for current watering restrictions.
