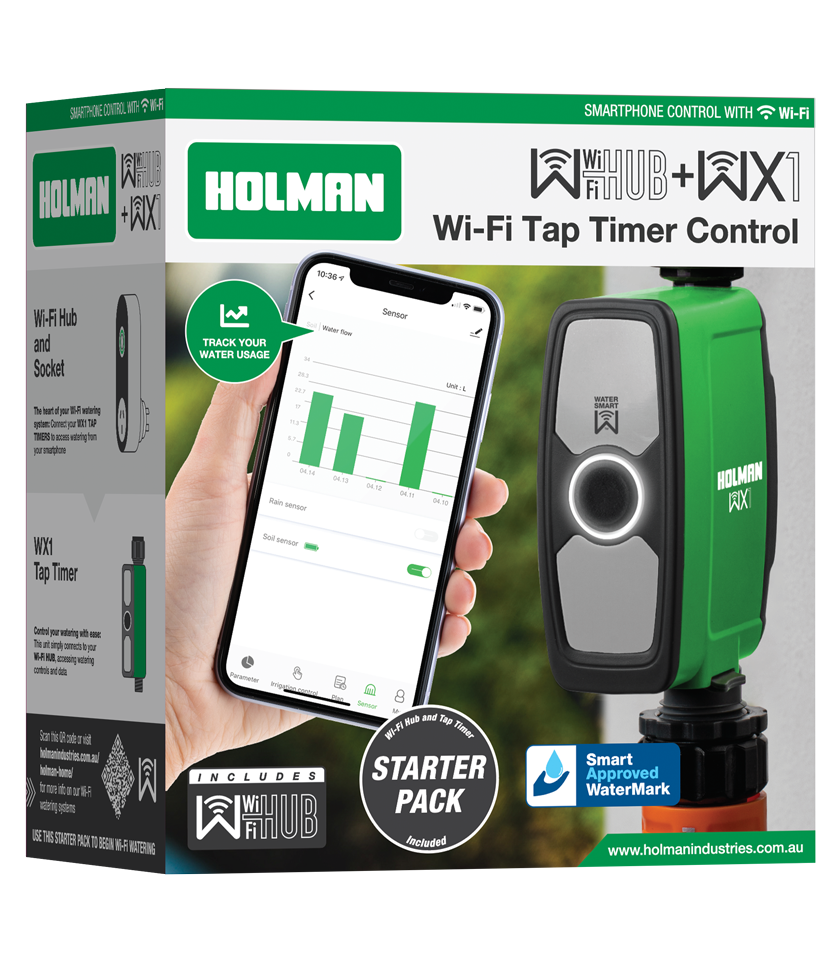

WX1 Tap Timer and Wi-Fi Hub

Integrate Wi-Fi into your watering and take control from anywhere. The Holman WX1 Tap Timer and Wi-Fi Hub is set up in 3 easy steps, so you can get smarter watering, even faster! Control up to 4 x WX1 Tap Timers through a single Wi-Fi Hub, to water your whole garden. The extra power socket allows you to have ON/OFF control from anywhere. All controlled via your smartphone and the Holman Home App.

Track water flow and water usage
Connect via Wi-Fi through your home 2.4GHz network
Connect up to 4 x WX1 Tap Timers to a single Wi-Fi Hub
Schedule power to the Wi-Fi Hub Socket from your smartphone
Pairs with a Smart Moisture Sensor (more info here)
2 Year Warranty
Smart Automation disclaimer
Do not use in freezing conditions
3° min working temperature

For FAQ’s and support, please visit our help centre.

WX Wi-Fi Range: WX1 Tap Timer & Hub

Available at Bunnings

Add to WishlistRemove from Wishlist

SKUWX1TH CategoriesBBS, Tap Timers TagWifi

Specifications

Material	Plastic
Colour (Tap Timer)	Green
Weight	0.468kg
Waterproof (Wi-Fi Hub)	No
Water Rating (WX1 Tap Timer)	IP54
Water Pressure	30kPa – 1200kPa
Water Flow	1L/min – 35L/min
Cordless	Yes
Wireless	Yes
Auto Shut Off	Yes
Battery Back-Up	Yes
Computer Software Compatible	No
Digital Display	No
Hose-End Compatible	Yes
Expandable	Yes
Manual Bypass	Yes
Maximum Cycle Time (min)	719
Number of Cycles	3
Number of Zones	1
Odd/Even Day Program	No
Programmable	Yes
Range from Hub to Timer	50m
Batteries Required	4 x AA (For Timer)

Manual & FAQ

For FAQ’s and support, please visit our help centre.

View Pairing Manual

How Can I Pair my Wi-Fi Hub using AP Mode

Videos

Preparing tap timers for winter

Be sure you check with your local water authorities for any sprinkler bans
We recommend either reducing the watering time or turning it off completely
In really cold climates, we suggest that you remove the battery and make sure there is no water left inside the tap timer
If you live in an area that gets frost, we recommend taking off the tap timer completely and storing it away for the meantime

Reviews

Great timer & easy to configure

I had no issues at all configuring this WiFi timer module. Didn’t need to read the instructions as it was easy. I don’t know why people say it’s was very difficult because it was simple. Sturdy built product also.

Thanks for taking the time to leave a review! We're glad to hear you love your new Wi-Fi Tap Timer 😊 Have a great week!
The Holman Team

Far Too Complex

I bought the wifi hub. I’ve connected a lot of things over the years but this device is just far too complex. I can’t even get past the first step. I won’t ever be buying more Holman’s gear that uses wifi. Sounded good in theory

Hi Luke, we're sorry to hear your WX1 is having issues connecting to Wi-Fi, please contact our Customer Service Team at support@holmanindustries.com.au for additional support with the connection process. Thank you, your Holman Team.

Valve failed on first use

Hub setup was a nightmare - but managed to get it done finally. Set up the time and put on a schedule to test it. First test and the valve has failed. Clicks like it is shutting off, but only slightly reduces the flow. Will take it back to bunnings for replacement - but how can I trust this to water when I'm away for weeks at a time?

Hi Keira, we're sorry to hear you had such a frustrating experience with the WX1 Tap Timer, this sounds like a faulty product and should not have happened. Our Customer Service Team will be happy to answer any setup and programming questions you might have. Please get in touch with them at support@holmanindustries.com.au. Thank you, Holman Team.

Just Brilliant

I have several manual timers in the garden, so I upgraded to this Holman WiFi setup. Well this now keeps the wife happy while we are away as I can now turn On or Off her water ......system.

Excellent product

I've had this product for more than a year now and it works properly.
It needs a bit of patience to set it up but easy to use and control.

Only buy if you are an IT engineer

Extraordinarily complicated
Just avoid this system pleade.

Wi fi hub connection

Finally got garden wi fi watering operational
Many hours trying to connect via 2.4 GHz even with long talking with a help line, ,YES works well , but seriously difficult for the average punter to get going

BX1 and Customer Support.

Bluetooth BX1and BX2 water timers have performed extremely well and easy to setup.I have 4 Holman Bluetooth timers.I find the convenience of changing settings on my mobile phone rather than at the tap is a great benefit for me.
I have contacted the support section by email when I needed advice and they gave me some clear and honest answers which helped me improve my setup.

Works well

We have a large garden and it is working well. I tried the orbit b hyve and I would loose connection all the time . But no problems so far with the Holman Wx1 Only have the one timer so looking to get two more but have move the single one around my big garden and it works well with good wifi connection

Awesome

I have purchased four of these timers and added them to my lawns, pergola and shed area. They are perfect which now allows us to holiday without fear of losing any plants. I have had incredible support from the help section. They have been spot on with that support. Thoroughly recommend.

1 2 3

works with

Integrate Wi-Fi into your watering and take control from anywhere with Holman Home. The WX1 Tap Timer and Wi-Fi Hub is built for Holman Home. Upgrade to the latest smart technology, available on Google Play and the App Store.

Features

Download

works with

Features

Download

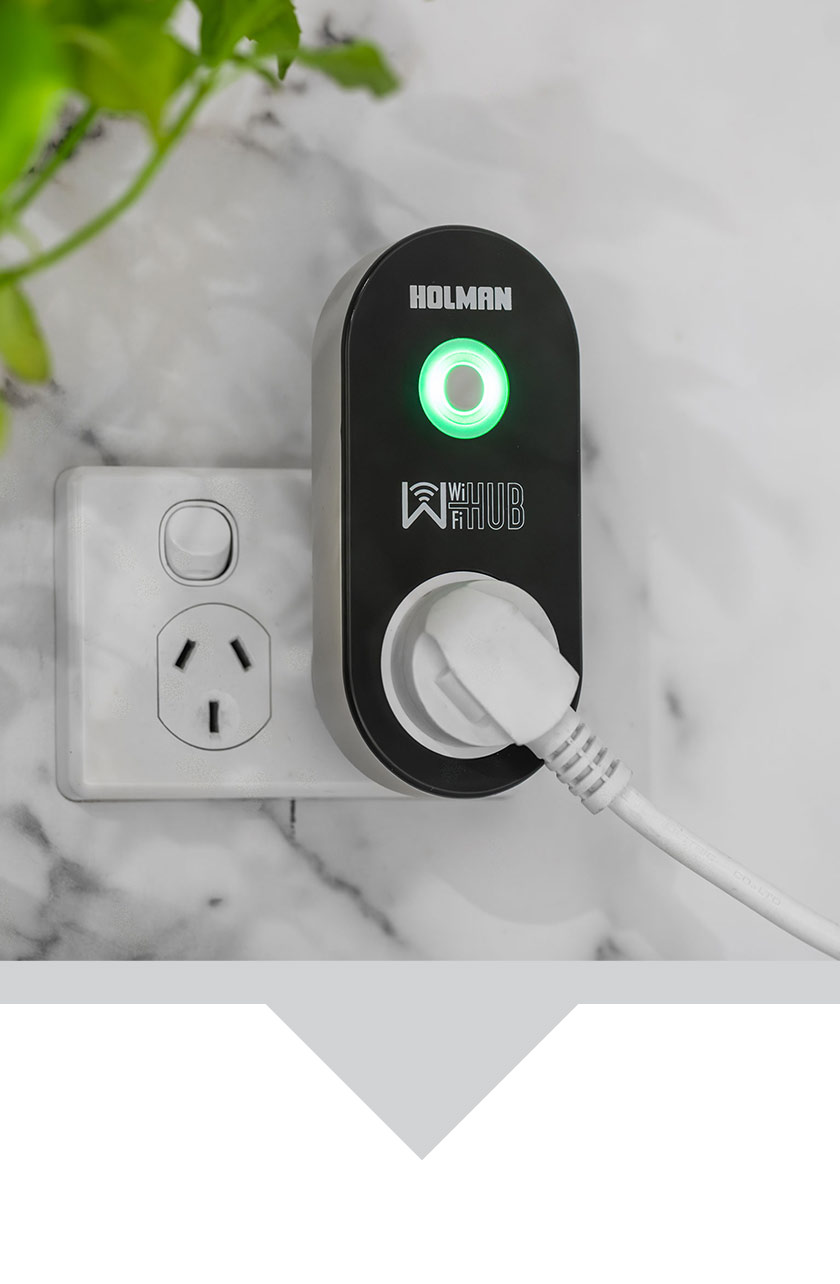

Wi-Fi Hub

The wireless connection allows for an easy set-up in 3 steps!

Easy Connection

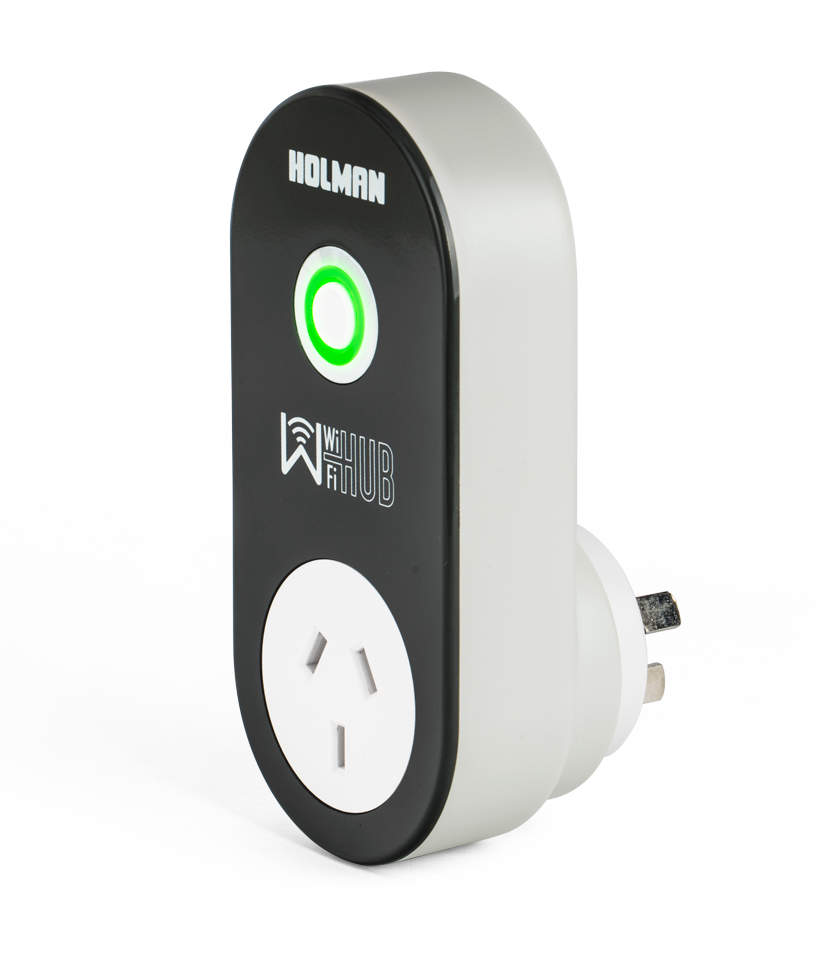

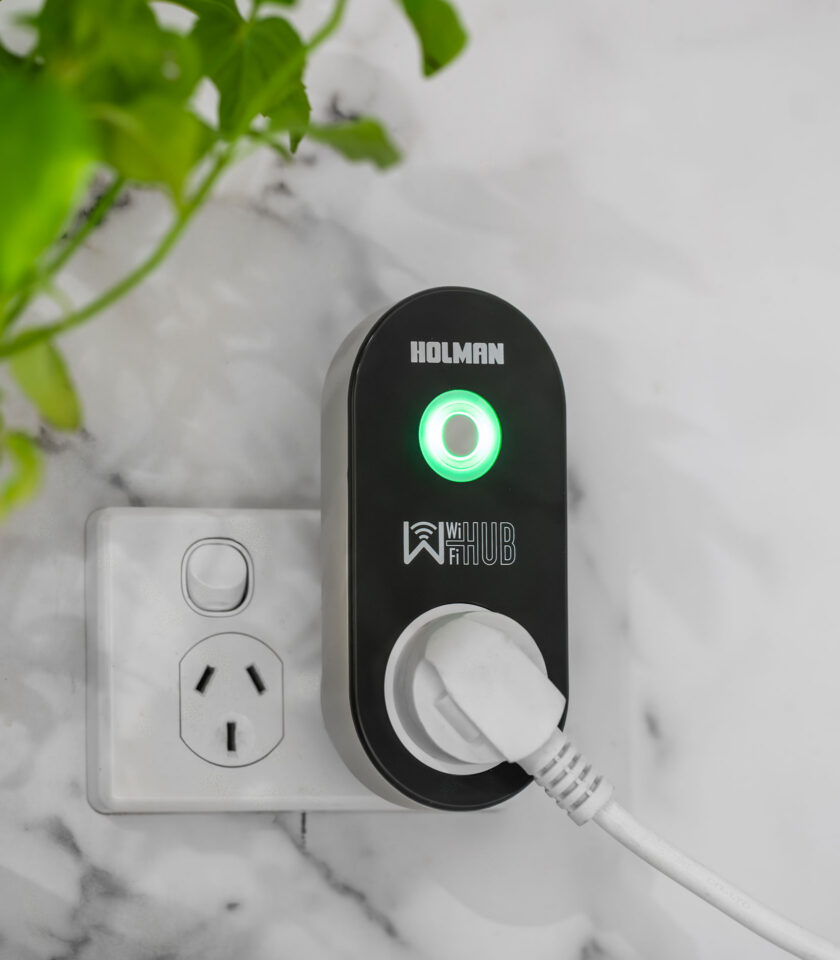

Wi-Fi Hub and Socket

The heart of your Wi-Fi watering system: Connect to your WX1 Tap Timer(s) to access watering from your smartphone. The extra power socket allows for ON/OFF use from anywhere!

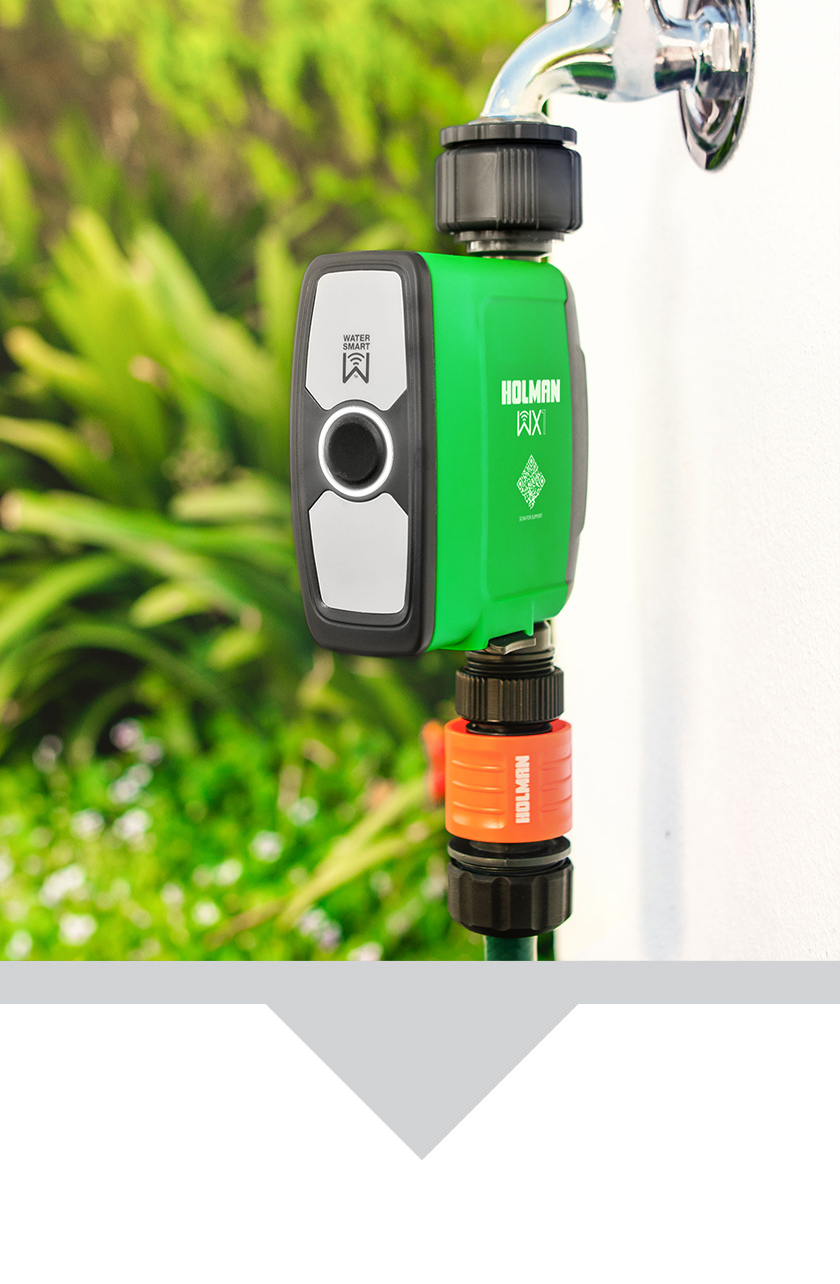

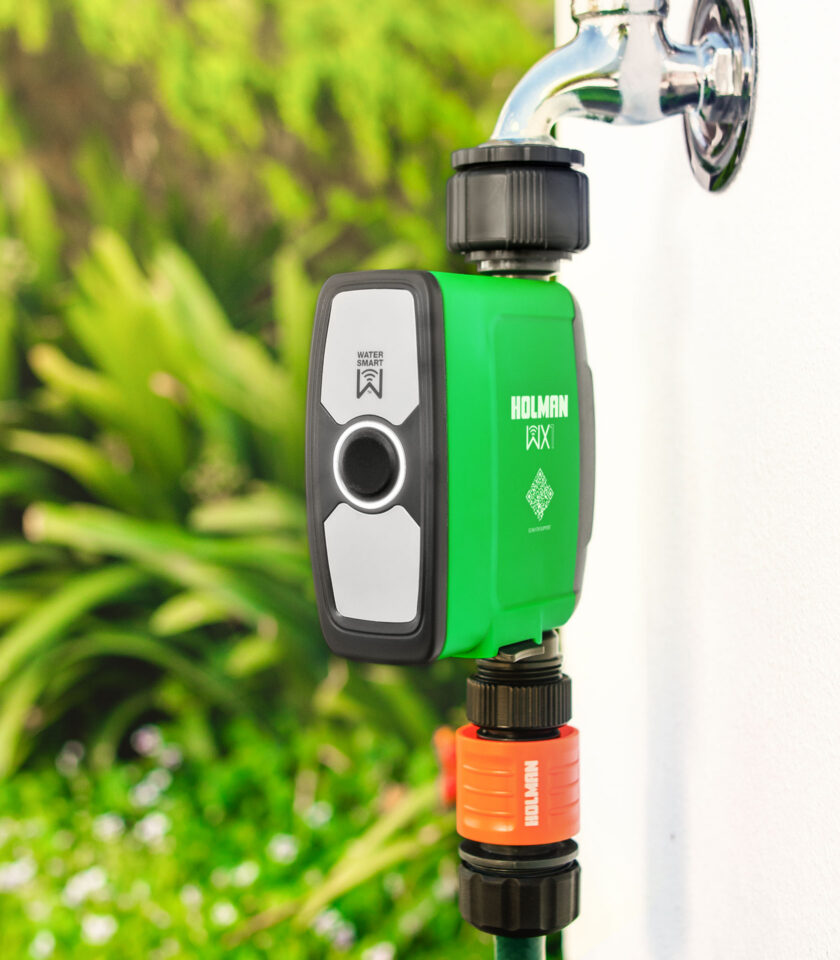

Tap Timer

Tracking

Control your watering with ease: This unit simply connects to your Wi-Fi Hub, accessing watering controls and data. Pair up to 4 Tap Timers to your Wi-Fi Hub. With custom, mist and manual watering options, it suits every garden.

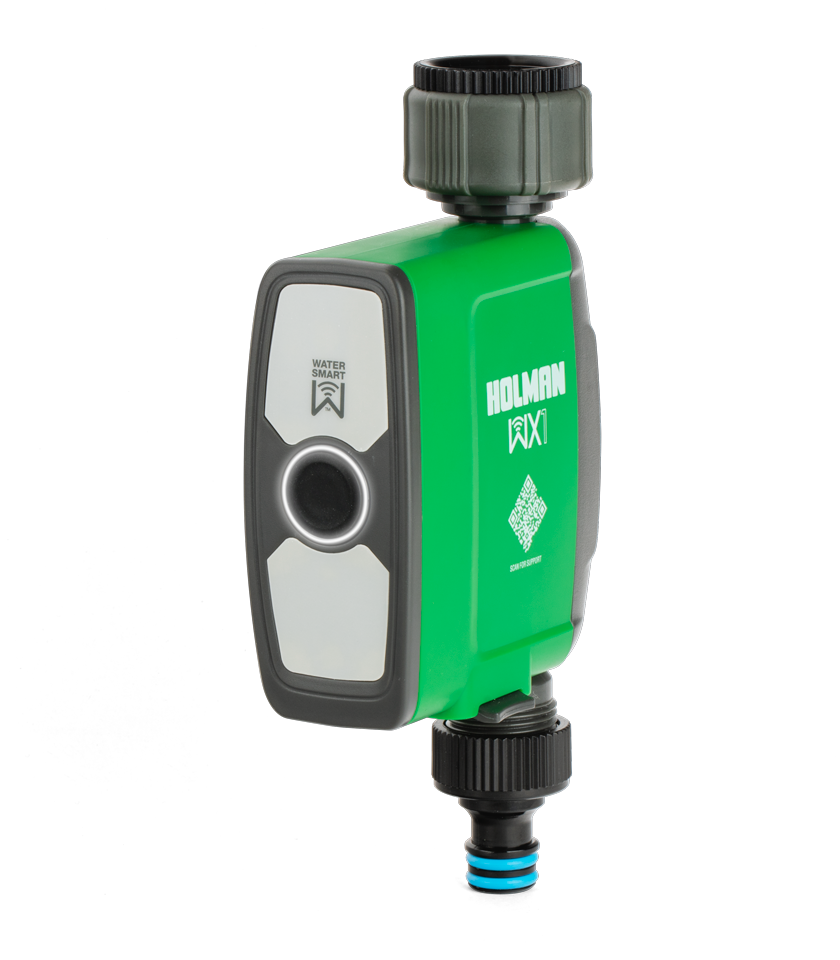

WX1 Tap Timer

Connect

Keep an eye on your water flow, water usage, watering schedules and more! The Wi-Fi Hub is powered through Holman Home, so you can have access from anywhere with an internet connection.

Easy Tracking

Wi-Fi Hub

The wireless connection allows for an easy set-up in 3 steps!

Easy Connection

The wireless connection allows for an easy set-up in 3 steps!

1. Plug your Wi-Fi Hub into your power outlet

2. Add Holman Home to your Smartphone

3. Link your WX1 Tap Timer through Holman Home

Wi-Fi Hub

Wi-Fi Hub and Socket

The heart of your Wi-Fi watering system: Connect to your WX1 Tap Timer(s) to access watering from your smartphone. The extra power socket allows for ON/OFF use from anywhere!

Tap Timer

WX1 Tap Timer

Tracking

Easy Tracking

Keep an eye on your water flow, water usage, watering schedules and more! The Wi-Fi Hub is powered through Holman Home, so you can have access from anywhere with an internet connection.

Features

Features:

For use with smartphone or tablet running iOS or Android
Control with Holman Home, available on the App Store and Google Play
Connect via Wi-Fi through your home 2.4GHz network
Connect up to 4 x WX1 Tap Timers to a single Wi-Fi Hub
Schedule power to the socket from your smartphone
Pairs with a Smart Moisture Sensor (more info here)
Custom, Mist and Manual Watering options
3 Start times with individual day selection options

Included:

Control from anywhere with Holman Home
Connect up to 4 x WX1 Tap Timers
Separate control of the power socket with ON/OFF function from anywhere
*Required to use WX1 Tap Timer and Moisture Sensor

Included:

Connects directly to Wi-Fi Hub
Manual and automatic ON/OFF options
Schedule up to 3 different start times
Run times of 1 minute up to 11h 59 minutes
Includes Misting Timer function
Tracks water flow and water usage
Tracks soil moisture and temperature when used with WXMS Smart Moisture Sensor

Pair With:

Connects directly to WX1 Tap Timer
Sends soil moisture and temperature data to WX1 Tap Timer
Reduce water usage with 5 x levels of adjustable moisture sensitivity
*Connect between 1x or 8x Smart Moisture Sensors (check model here) per Wi-Fi Hub
