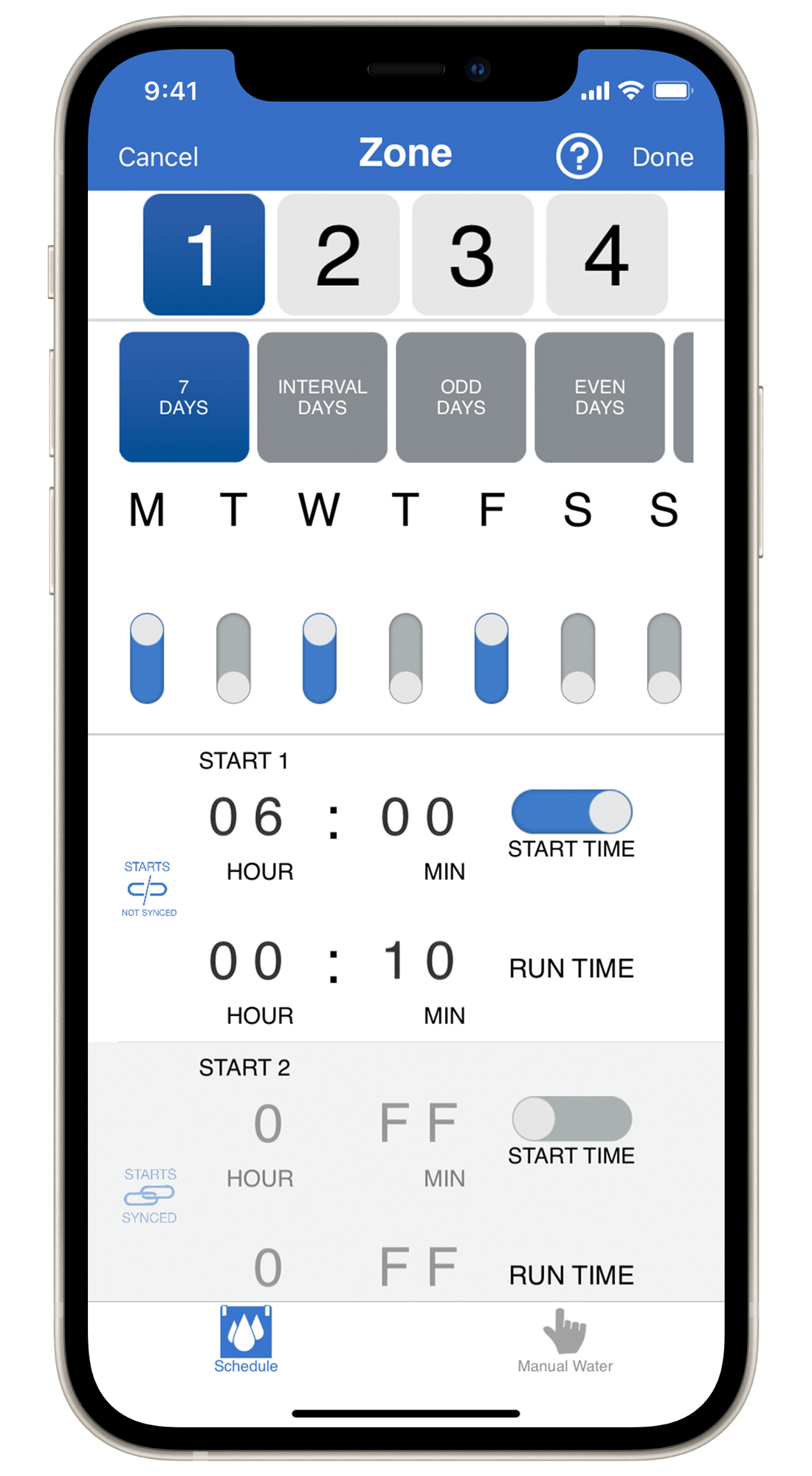

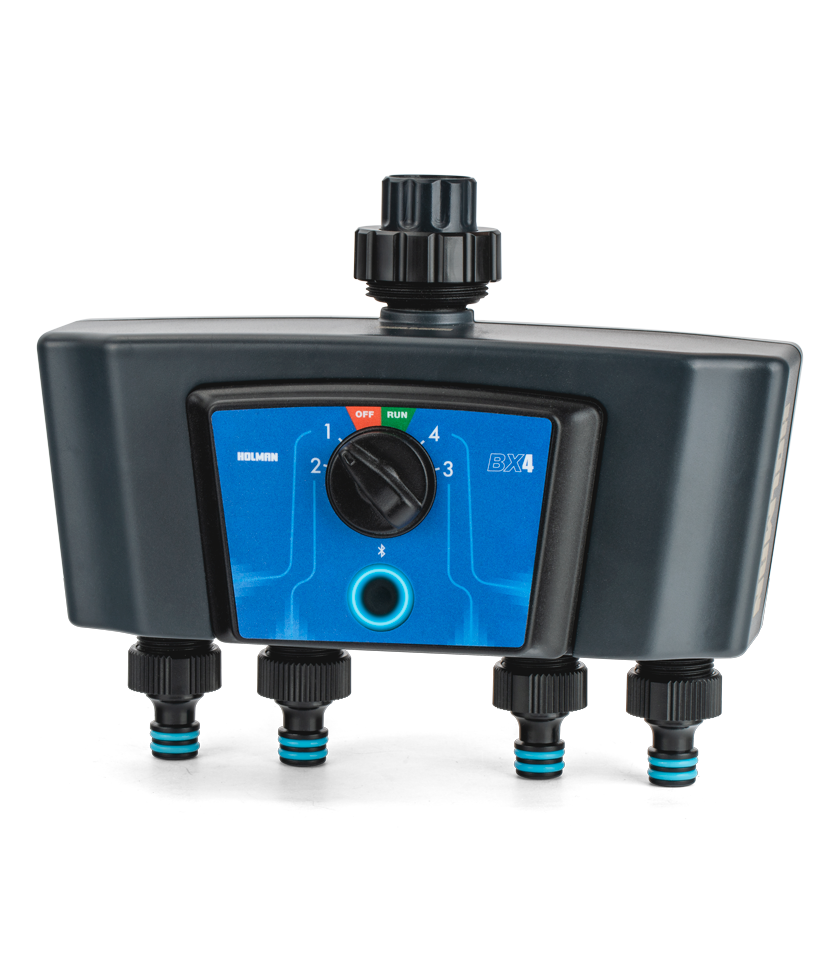

The new BX4 4x Outlet Bluetooth® Tap Timer controls watering for your medium to large sized garden. The 4x outlet is water restriction friendly and allows you to make adjustments from the comfort of your own mobile. Easily choose from different watering durations, flexible scheduling and interval watering, all from the iGardener™ App.
For FAQ and support, please visit our help centre
| Outlets: 4 |
| Material | Plastic |
|---|---|
| Colour (Tap Timer) | Grey |
| Weight | 0.819kg |
| Water Rating | IP54 |
| Water Pressure | 50kPa – 800kPa |
| Water Flow | 1L/min – 35L/min |
| Cordless | Yes |
| Wireless | Yes |
| Auto Shut Off | Yes |
| Battery Back-Up | Yes |
| Digital Display | No |
| Hose-End Compatible | Yes |
| Manual Bypass | Yes |
| Maximum Cycle Time | 23hr 59min |
| Number of Cycles | 3 |
| Number of Zones | 4 |
| Odd/Even Day Program | Yes |
| Water restriction friendly | Yes |
| Programmable | Yes |
| Range from Tap Timer to mobile | 20m |
| Batteries Required | 4 x AA |
| LED pattern | Meaning |
|---|---|
| Red/Blue alternate flash | Start up pattern (recognition of batteries/power) |
| Blue flash 3 times | Start up complete |
| Quickly flashing blue (10 times) | Updated over Bluetooth |
| Single blue flash | Response to pressing button – manual on or off |
| Blue flash 0.5 seconds on, 20 seconds off | Watering |
| Purple (pink) flash on start up | Start up error – press Bluetooth button (start/stop) to clear |
| Purple (pink) solid light | Error – reset device to clear |
| Red light on start up Red flash 0.5 seconds on, 15 seconds off | Low battery warning – timer is not able to operate normally in this mode. Replace batteries. |
| Red Flash 3 times | Start button pressed when dial is in ‘OFF’ position Start button pressed when timer is in low battery mode |
Resetting the BX Tap Timers:

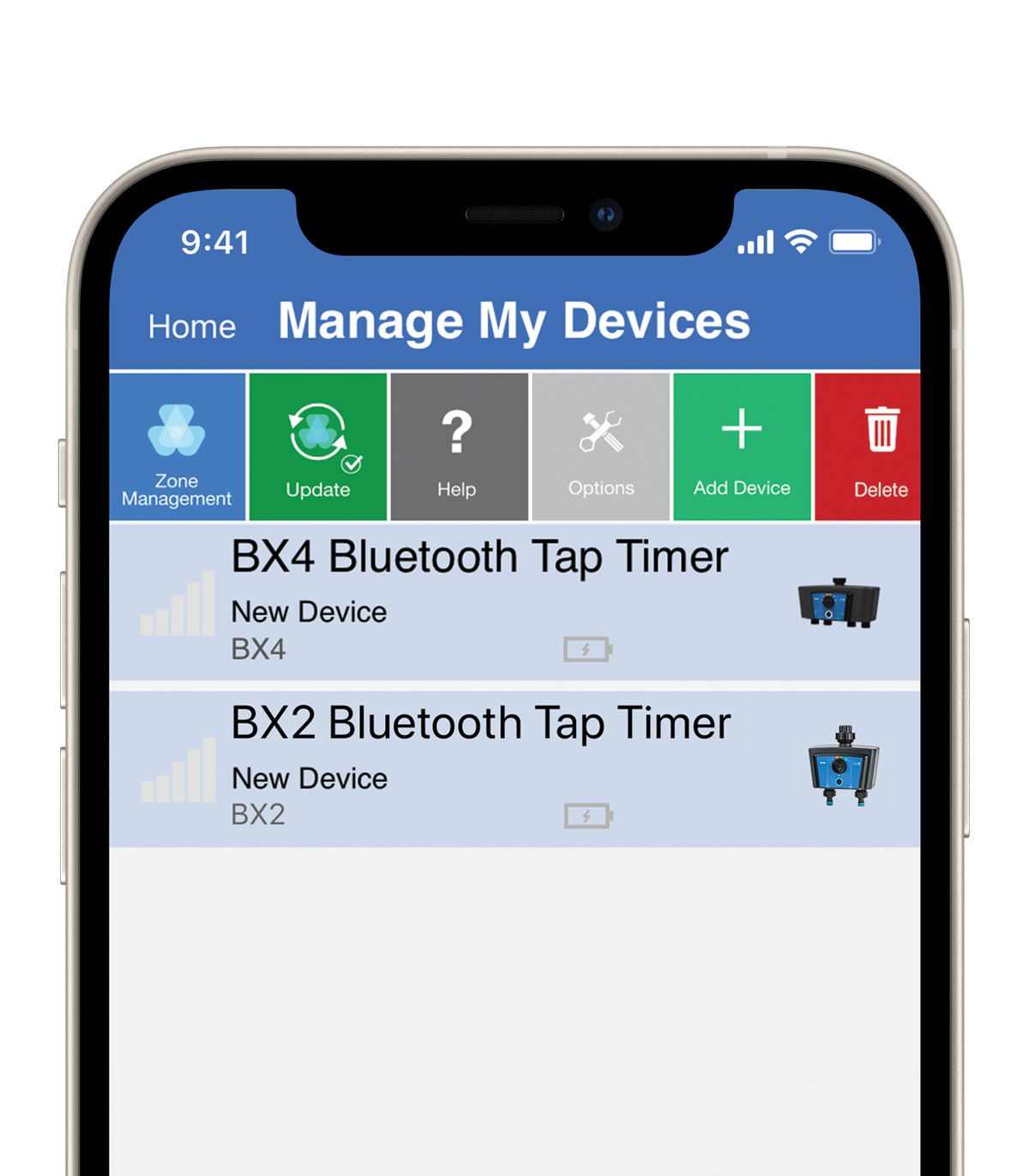

Before a hard reset, we recommend that the timer is removed from the iGardener app – use the ‘bin’ icon at the top of the page to remove the highlighted tap timer prior to reset –
BX1 hard reset – remove battery compartment for 2min, press and hold button as you push the compartment back in, device will flash blue quickly, let go of button. Add timer back into iGardener.
BX2 hard reset – move dial to ‘OFF’, press and hold the button, watch for 3 quick red flashes, let go of button. Add timer back into iGardener.
BX4 hard reset – move dial to ‘OFF’ press and hold the button, watch for 3 quick red flashes, continue to hold for 6 seconds, 3 more red flashes will occur, let go of button. Add timer back into iGardener.
How the hell does the timer work when your Bluetooth is out of range. Eg at work
Hi Doc,
Sorry to hear that you're having some issues! You might be better suited to our WiFi range of tap timers as you are able to operate them while you're at work or anywhere you are using WiFi, whereas for our Bluetooth tap timers, you must be within a 20m range of the system.
Hope this helps!
The Holman Team
Like the other reviewers, this worked fine for the summer season. I did the right thing by removing the batteries and storing for the winter. Now it won't talk to my phone or show any indicator lights. Holman needs to sort itself out or it will have no customers pretty soon at this rate
User guide not the best does not say when you save and update as it does not seem to work. Am using odd days for zone one and 7 days for zone 2. 3 and 4 will use manual.
Hi Dallan, we're sorry to hear your tap timer programming not working as promised, please get in touch with our Customer Service Team at support@holmanindustries.com.au and they will be happy to help with scheduling questions and any additional troubleshooting. Thank you, Holman Team.
Product seems to be working OK but instruction book needs up dating No instruction on unit itself regarding to run or off switch
Listen to all the other reviews. This is not a good quality product. Our BX4 died after 3 months and almost took our garden with it.
Can't be bothered going into all the details for why this was such a waste of money. I've since bought an Orbit 4 Station unit and the difference in quality is astonishing. Do not waste your time with this BX4 product.
The Bluetooth failed. The system leaked. I needed to go through a laborious process removing batteries and pairing my phone every single time I wanted to program the system with any change.
I bought it from Bunnings and paid the price for shopping based on convenience. Will never buy a Holman Industries product again.
Thank you for sharing your experience with our BX4 system, and we're truly sorry to hear that it did not meet your expectations. Your feedback is crucial to us as we strive to improve our products. We understand your frustration with the Bluetooth and leaking issues, and we apologize for the inconvenience this has caused. If you need further support or feedback. Please don't hesitate to contact our Customer Service Team at support@holmanindustries.com.au. Thank you, your Holman Team.

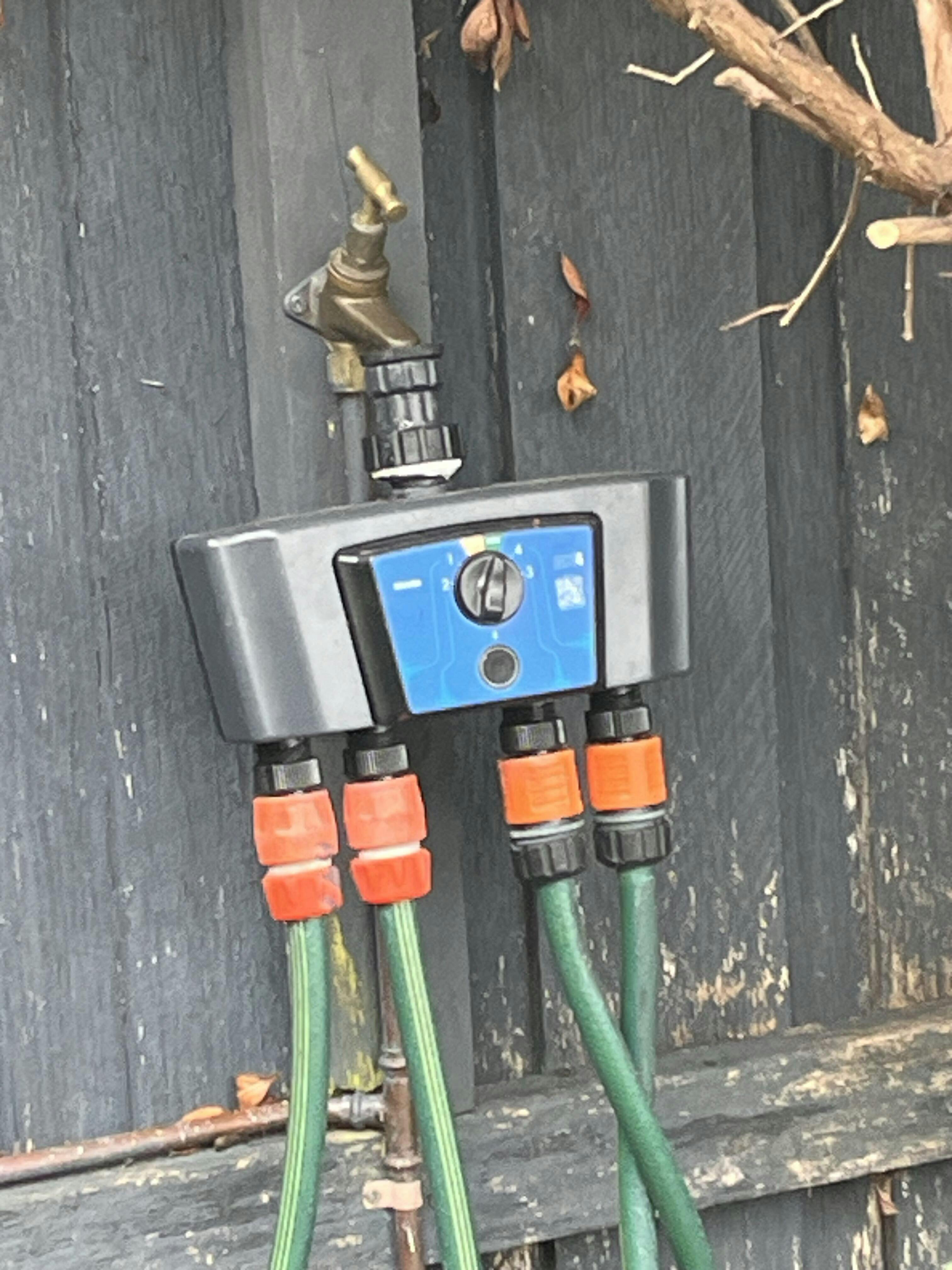

I am on my 3rd 4 outlet unit in under 3 years. Unfortunately, I haven’t kept receipts to verify my purchases. All the units worked beautifully for the first few months. They were just what I wanted. Then, around a year mark, stopped turning on automatically and eventually even manual setting didn’t work, valves wouldn’t open. On my second unit, only one valve opened when using manually when I gave up on it. And this occurred when we were away on vacation. My last unit pictured is not working automatically now, just manually. Cannot recommend them for the long term.
I must admit that after reading the reviews I was somewhat sceptical, however common products in the past and never really had too many issues.
I cannot talk on the construction or longevity of the product as I've only just purchased it, however as an old tech head I found reading the instructions carefully I had no issues programming the precise patterns that I wanted. The only issue I could find was that I could not turn off starts/synced function once activated. Not really a big issue but a small glitch in the matrix.
Excluding longevity and construction this device seems perfect for my needs and I would recommend it.
Already had one replaced. The second one is as inconsistent as the first. The hardware is poor, and the software worse, and the unit can only be paired with one mobile. Out of warranty, I'm planning on removing it and smashing it so that I get at least a little satisfaction from it!
I’ve had two of the BX4 timers and after a year of owning them both had the issue of displaying a solid red LED which should mean low batteries. I tried 3 different sets of batteries, even buying more brand new ones just in case of a bad batch. Unfortunately the red LED persisted.
I really loved the product while it works because it has Bluetooth and the app is great with more settings than most other systems out there.
Bunnings had an issue with exchanging them because they were more than a year old so just be warned. Hopefully you’ll have better luck than me but no more for me.
Had this in for over a year
Use it a 4 station control for my lawn
Very happy
Take full control of your garden watering and lighting with a Bluetooth® connection and a tap of your iPhone or Android. Our BX4 4x Outlet Tap Timer is built for the iGardener™ smartphone app!
