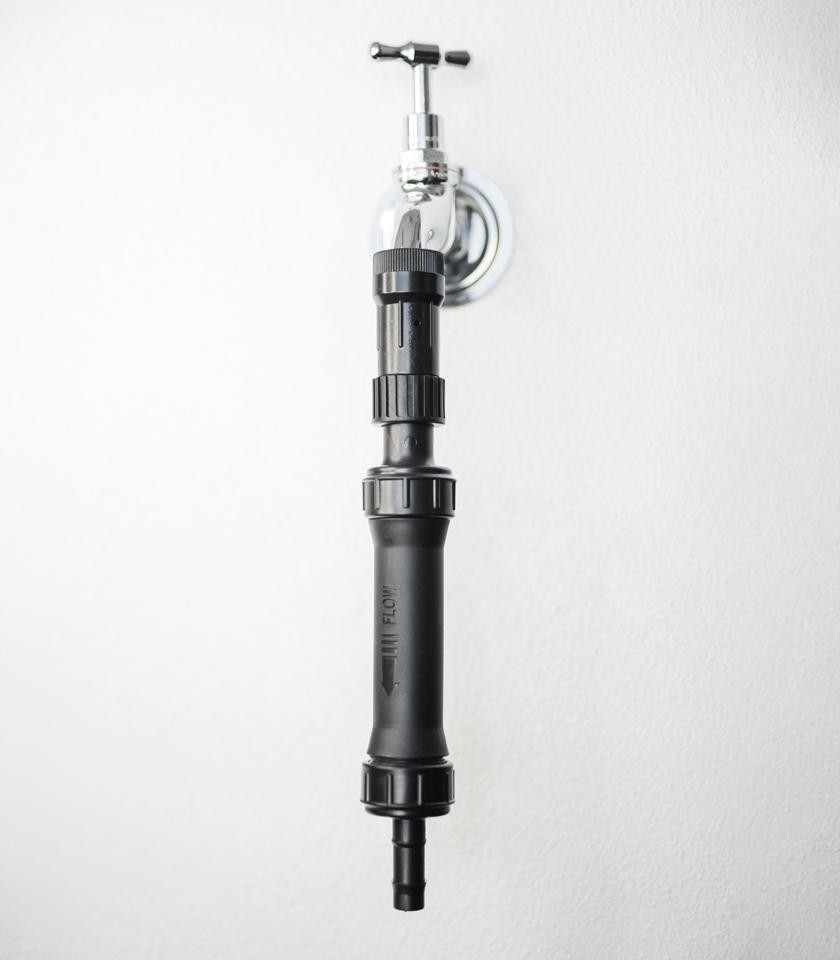

13mm Pressure Reducer with Filter Assembly

Drip Systems use low water pressure to operate efficiently. This two-stage assembly reduces the water pressure before filtering it to the drip system. Dripline and conventional drippers emit water from tiny outlets and require filtered water to avoid blockages. Always protect the system by using a filter. Blockages will stop the drip line from operating. Install from a water source with a pump, directly onto a tap, or along the mainline in the garden but locate “inline and before” the irrigation.

Specifications: Pressure Reducer – Inlet: Maximum 8bar (800kPa), Inlet thread size: 3/4″ BSP (female), Outlet: 1.8 bar (180kPa), Outlet thread size: 3/4″ BSP (male)

Filter – Inlet thread size: 1″ BSP (male), Outlet: 13mm Barbed end
